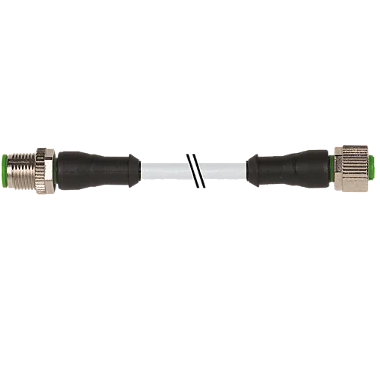

Cabo Pur M12 Macho Reto 4P Cinza 2 metros 7000-40021-2240200 Murrelektronik

Código: 7000-40021-2240200 Marca: MURRELETRONIK

~~R$ 139,18~~ R$ 102,39

até 5x de R$ 22,99

Qtde: Comprar Disponibilidade: Imediata Estoque: 14 unidades

Parcelas
- 1x de R$ 102,39 sem juros
- 2x de R$ 55,11
- 3x de R$ 37,28
- 4x de R$ 28,38
- 5x de R$ 23,00
Parcelas
- 1x de R$ 102,39 sem juros
- 2x de R$ 55,11
- 3x de R$ 37,28
- 4x de R$ 28,38
- 5x de R$ 23,00

DADOS TÉCNICOS

Cable length	2 m

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Family construction form	M12
Thread	M12 x 1
suitable for corrugated tube (internal Ø)	10 mm
Gender	male
Cable outlet	straight
Coding	A
Material	PUR
No. of poles	4
Width across flats	SW13
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Family construction form	M12
Thread	M12 x 1
Gender	female
suitable for corrugated tube (internal Ø)	10 mm
Cable outlet	straight
Coding	A
Material	PUR
No. of poles	4
Width across flats	SW13
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Electrical data | Supply

Operating voltage AC max.	250 V
Operating voltage DC max.	250 V
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Installation | Connection

Mounting set	M12 x 1

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	2,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Coating locking	Nickeled
Coating of fitting	nickel plated
Color contact carrier	green
Locking material	Zinc die-casting
Material screw connection	Zinc die-casting

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality
