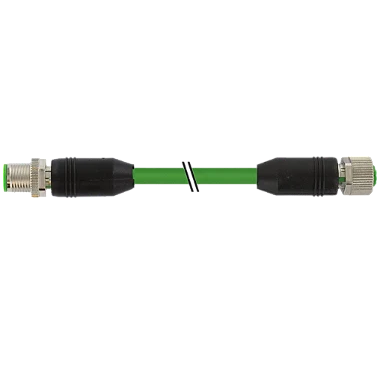

Cabo Pur M12 Macho Reto 6P Verde 15 Metros 7000-46041-8021500 Murrelektronik

Código: 7000-46041-8021500 Marca: MURRELETRONIK

~~R$ 1.210,90~~ R$ 1.162,05

até 6x de R$ 220,20

Qtde: Comprar Disponibilidade: Imediata Aproveite! Restam apenas 2 unidades

Parcelas
- 1x de R$ 1.162,05 sem juros
- 2x de R$ 625,42
- 3x de R$ 423,10
- 4x de R$ 322,06
- 5x de R$ 261,02
- 6x de R$ 220,11
Parcelas
- 1x de R$ 1.162,05 sem juros
- 2x de R$ 625,42
- 3x de R$ 423,10
- 4x de R$ 322,06
- 5x de R$ 261,02
- 6x de R$ 220,11
R$ 1.162,05

DADOS TÉCNICOS

Cable length	15 m

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M12
Thread	M12 x 1
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	6
Width across flats	SW13

Side 2

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M12
Thread	M12 x 1
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	6

Electrical data | Supply

Operating voltage AC max.	30 V
Operating voltage DC max.	30 V
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	0,8 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Coating locking	Nickeled
Material gasket	FKM
Locking material	Zinc die-casting

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality
